Enable VPC Flow Logs

Enable VPC Flow Logs

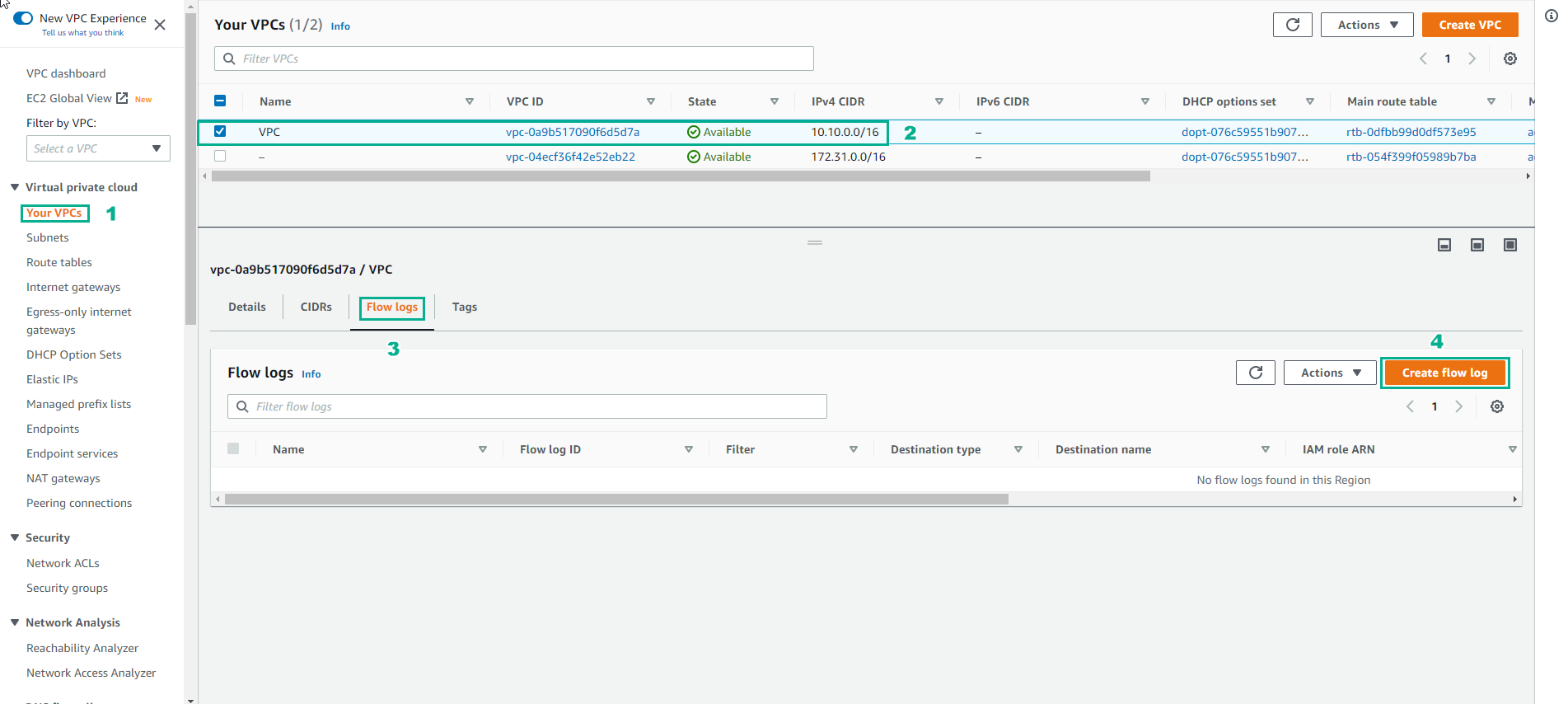

  1. Access to the VPC interface:

    • Select VPC.
    • Select Flow logs.
    • Select Create flow log.

    Network Monitoring

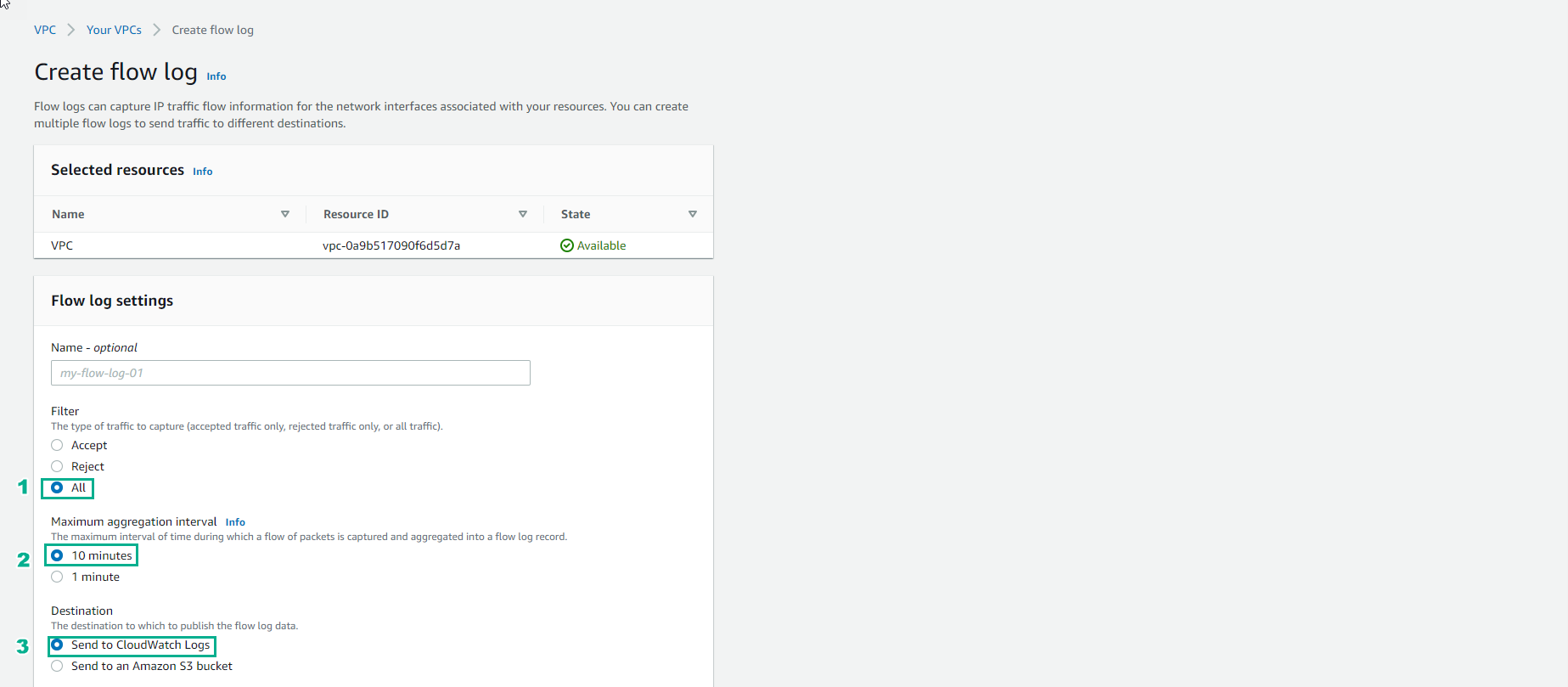

  2. In the Create flow log interface:

    • Configure the Filter, select All.
    • Set the Maximum aggregation interval to 10 minutes.
    • For Destination, select Send to CloudWatch Logs.

    Network Monitoring

  3. Continue with the configuration:

    • For Destination log group, select VPCFlowLogGroup created from CloudFormation.
    • For IAM Role, select RoleForVPCFlowLogs created from CloudFormation.
    • In Log record format, select AWS default format.
    • Select Create flow log.

    Network Monitoring

  4. Complete the creation of VPC Flow Logs.

    Network Monitoring
