Create VPC Flow Logs

VPC Flow Logs is a feature that allows you to monitor information about IP traffic to and from network interfaces in your VPC. Stream log data can be published to Amazon CloudWatch Logs or Amazon S3. After creating a stream log, you can retrieve and view its data at the selected destination.

Stream logs can help you with several tasks, such as:

Diagnose security group rules that are too restrictive
Monitor traffic to your EC2 instance
Determine the direction of traffic to and from network interfaces
Flow log data is collected outside your network traffic path and therefore has no impact on network traffic or latency. You can create or delete stream logs without the risk of affecting network performance.

In this lab, Stream data will be published to Amazon CloudWatch Logs.

Using CloudFormation to deploy infrastructure

Create IAM Role to use to push flow logs to cloudwatch
Cloud Watch Log Group, the flow log will be pushed to this group.
EC2 instance, used to check traffic

We must prepare
- Download file VPC-Flow-Logs-Lab.yaml
- Go to AWS Management Console, find CloudFormation
- Select CloudFormation
In the AWS CloudFormation interface
- Select Create stack
- Select With new resources
In the Create stack interface
- Select Template is ready
- Select Upload a template file
- Select Choose file
- Select the downloaded yaml file.
- Select Next
In the Specify stack details interface
- Enter Network-Monitoring
- For Parameters, select the created VPC
- Select Public subnet created
- Select Next
Select Next
Select Create stack
Complete stack creation

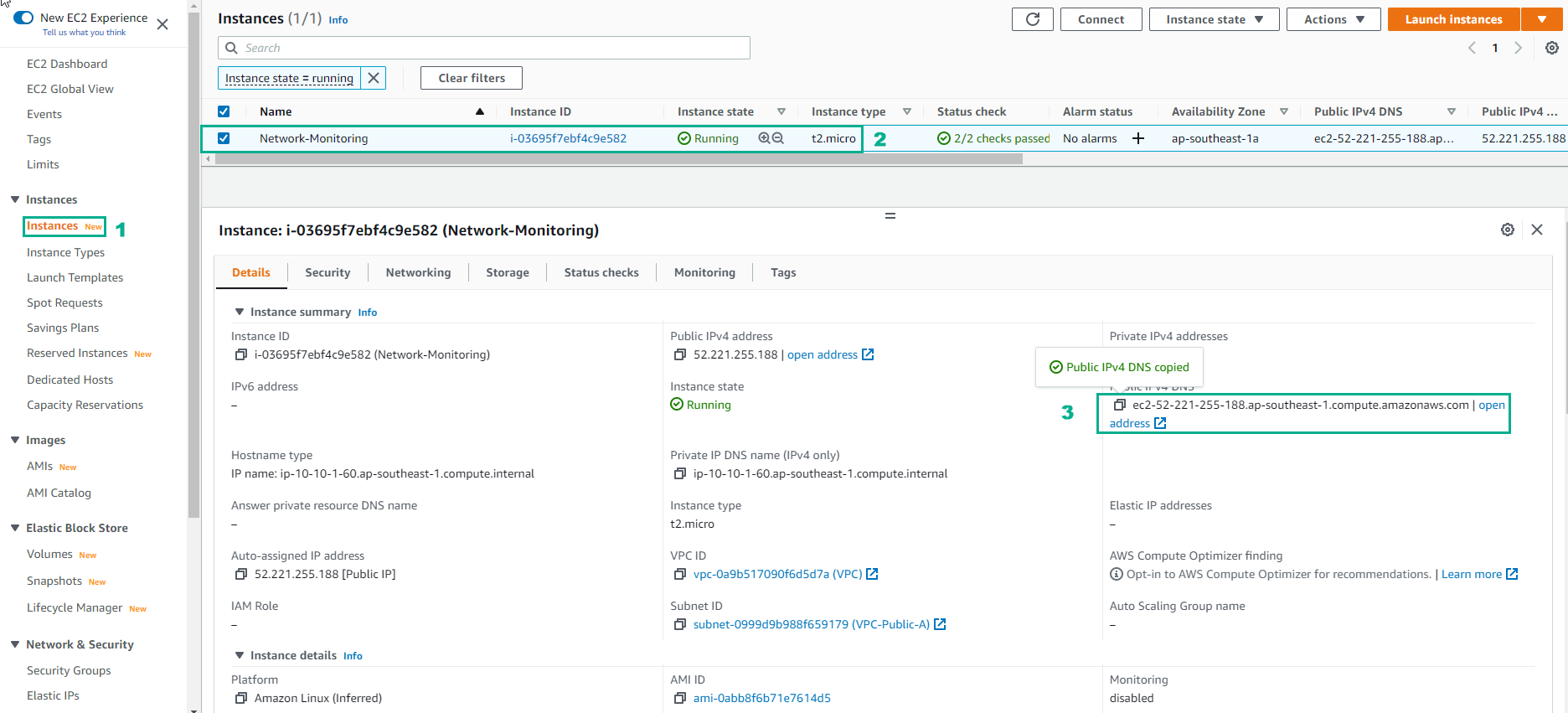

Access to EC2 interface, the test created 1 EC2 instance.
Use Public IPv4 DNS to access.
